Q. 73 Gate EC-2007 Question Paper With Solutions

Consider the following statements about the C − V characteristics plot :
S1 : The MOS capacitor has as n-type substrate
S2 : If positive charges are introduced in the oxide, the C − V polt will shift to the left.
Then which of the following is true?

(A) Both S1 and S2 are true

(B) S1 is true and S2 is false

(C) S1 is false and S2 is true

(D) Both S1 and S2 are false

Answer:   (C)

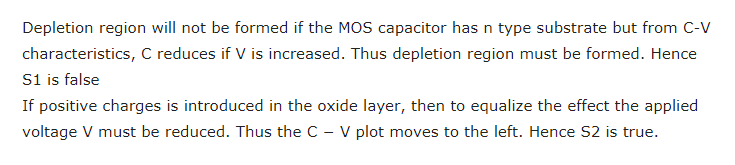

Explanation:

Gate EC-2007 Question Paper With Solutions
