Q. 56 At the inlet of an axial impulse turbine rotor, the blade linear speed is 25 m/s, the
magnitude of absolute velocity is 100 m/s and the angle between them is Gate ME 2014-3 Question Paper With Solutions The
relative velocity and the axial component of velocity remain the same between

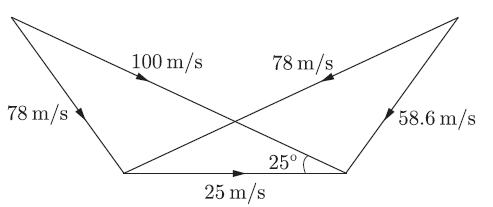

the inlet and outlet of the blades. The blade inlet and outlet velocity triangles are
shown in the figure. Assuming no losses, the specific work (in J/kg) is ______

Gate ME 2014-3 Question Paper With Solutions

Answer: (3279.7)

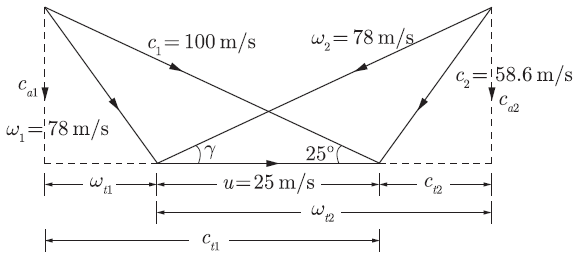

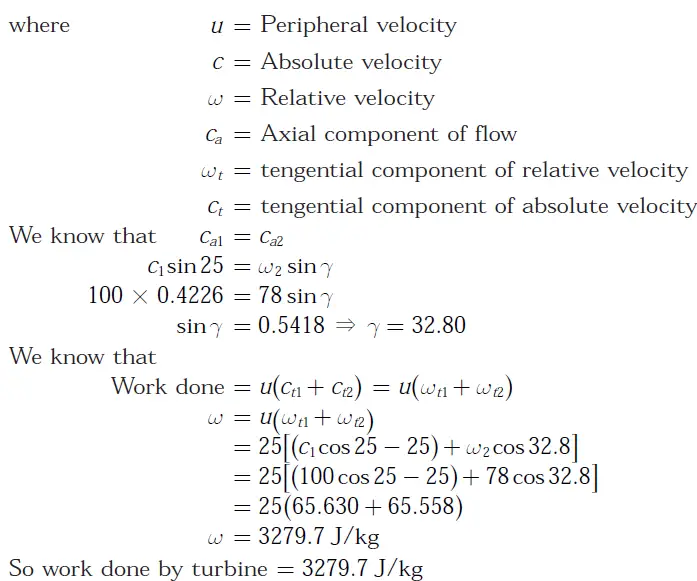

Explanation:

Gate ME 2014-3 Question Paper With Solutions

Gate ME 2014-3 Question Paper With Solutions

Gate ME 2014-3 Question Paper With Solutions
