Gate ME 2014-3 Question Paper With Solutions

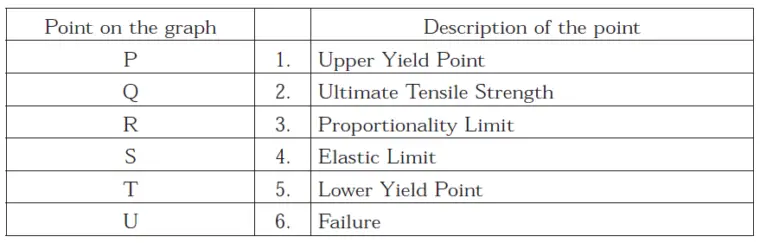

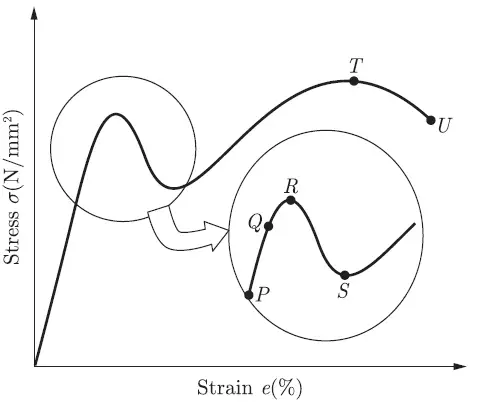

Q. 34 The stress-strain curve for mild steel is shown in the figure given below. Choose
the correct option referring to both figure and table.

Gate ME 2014-3 Question Paper With Solutions
Gate ME 2014-3 Question Paper With Solutions(A) P-1, Q-2, R-3, S-4, T-5, U-6

(B) P-3, Q-1, R-4, S-2, T-6, U-5

(C) P-3, Q-4, R-1, S-5, T-2, U-6

(D) P-4, Q-1, R-5, S-2, T-3, U-6

Answer: (C)

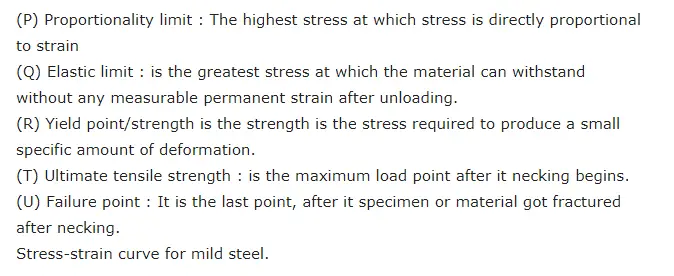

Explanation:

Gate ME 2014-3 Question Paper With Solutions

Gate ME 2014-3 Question Paper With Solutions
