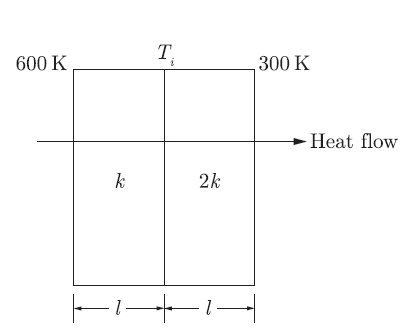

Q. 54 Heat transfer through a composite wall is shown in figure. Both the sections of
the wall have equal thickness (l ). The conductivity of one section is k and that of
the other is 2k . The left face of the wall is at 600 K and the right face is at 300 K.
The interface temperature Ti (in K) of the composite wall is _____

Gate ME 2014-3 Question Paper With Solutions

Gate ME 2014-3 Question Paper With Solutions

Answer: (400)

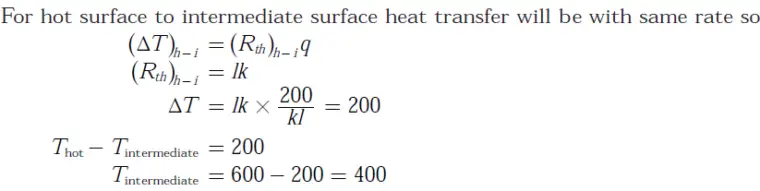

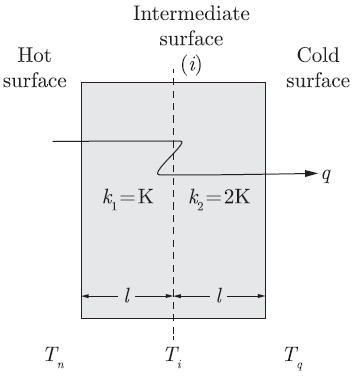

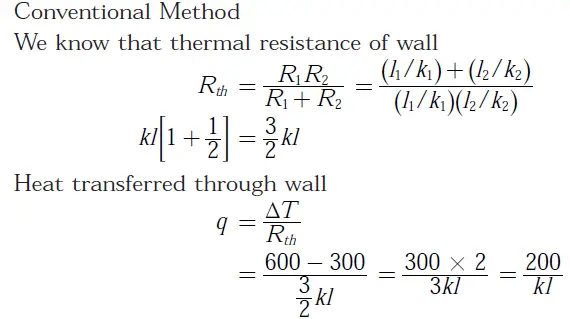

Explanation:

Gate ME 2014-3 Question Paper With Solutions

Gate ME 2014-3 Question Paper With Solutions

Gate ME 2014-3 Question Paper With Solutions

Learn More:   Gate ME-2013 Question Paper With Solutions
