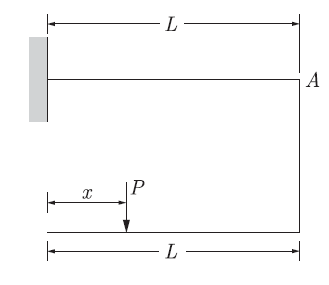

Q. 45 A force P is applied at a distance x from the end of the beam as shown in the
figure. What would be the value of x so that the displacement at ‘A’ is equal to
zero ?
(A) 0.5L
(B) 0.25L
(C) 0.33L
(D) 0.66L
Answer: (C)

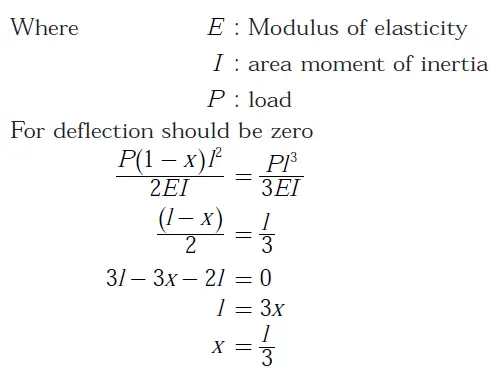

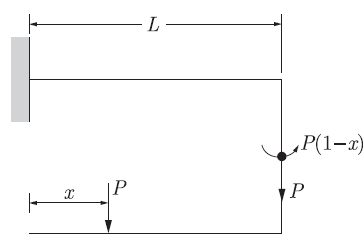

Explanation:
Q. 45 A force P is applied at a distance x from the end of the beam as shown in the
figure. What would be the value of x so that the displacement at ‘A’ is equal to
zero ?
(A) 0.5L
(B) 0.25L
(C) 0.33L
(D) 0.66L
Answer: (C)
Explanation:
