Gate ME-2005 Question Paper With Solutions

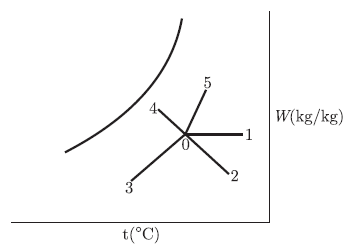

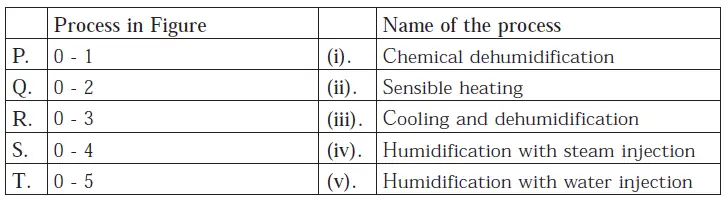

Q 62. Various psychrometric processes are shown in the figure below.

(A) P1, Q2, R3, S4, T5

(B) P2, Q1, R3, S5, T4

(C) P2, Q1, R3, S4, T5

(D) P3, Q4, R5, S1, T2

Answer: (B)

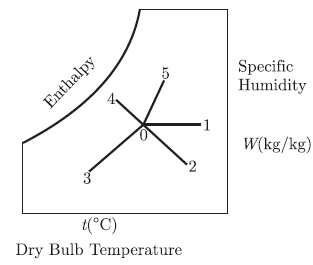

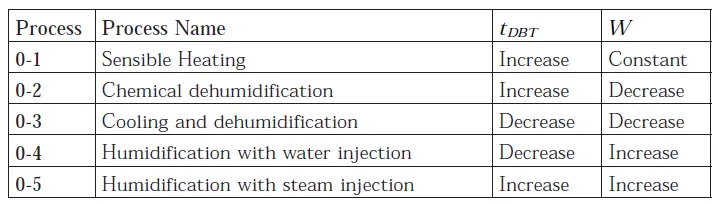

Explanation:
