Gate ME-2005 Question Paper With Solutions

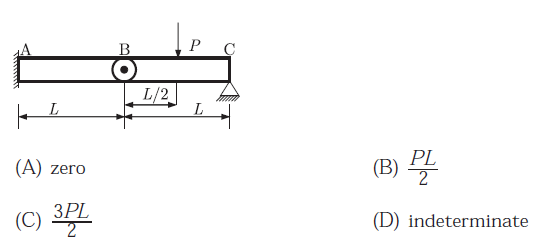

Q 44. A Beam is made up of two identical bars AB and BC by hinging them together at B .the end A is built in (cantilevered) and the end C is simply supported .with the load P acting as shown the bending moment at A isGate ME-2005 Question Paper With Solutions
Answer: (B)

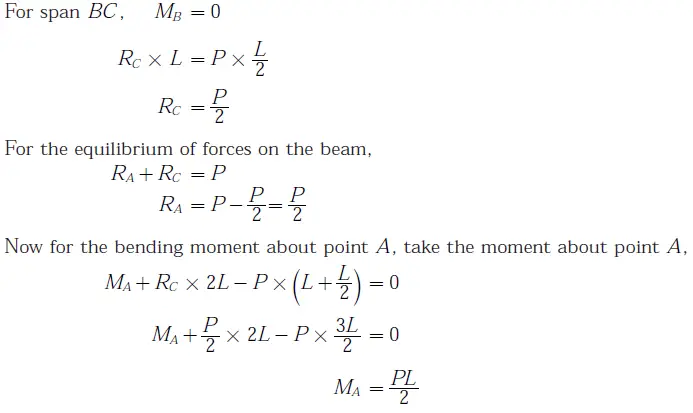

Explanation:

Gate ME-2005 Question Paper With Solutions

Gate ME-2005 Question Paper With Solutions

Learn More:   Gate EE-2014-3 Question Paper With Solutions
