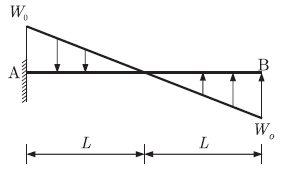

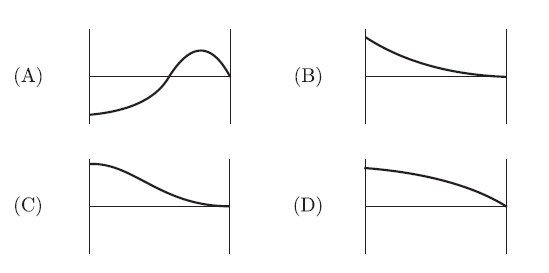

Q 45. A cantilever beam carriers the anti symmetric load shown where w is the peak intensity of the distributed load .Qualitatively ,the correct bending moment diagram for this beam is
Answer: (C)
Explanation:
Q 45. A cantilever beam carriers the anti symmetric load shown where w is the peak intensity of the distributed load .Qualitatively ,the correct bending moment diagram for this beam is
Answer: (C)
Explanation:
