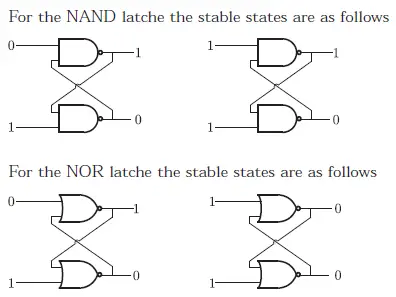

Q. 38 Refer to the NAND and NOR latches shown in the figure. The inputs
for both latches are first made (0, 1) and then, after a few seconds, made (1, 1). The corresponding stable outputs
are
(A) NAND: first (0, 1) then (0, 1) NOR: first (1, 0) then (0, 0)
(B) NAND : first (1, 0) then (1, 0) NOR : first (1, 0) then (1, 0)
(C) NAND : first (1, 0) then (1, 0) NOR : first (1, 0) then (0, 0)
(D) NAND : first (1, 0) then (1, 1) NOR : first (0, 1) then (0, 1)
Answer: C
Explanation:
