Gate EC-2016 – 2 Question Paper With Solutions

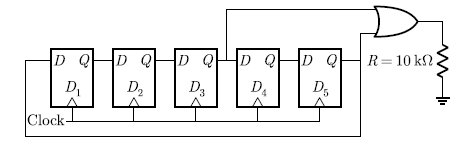

Q.27 Assume that all the digital gates in the circuit shown in the figure are ideal, the resistor Gate EC-2016 - 2 Question Paper With Solutions and the supply voltage is 5 V. The D flip-flops Gate EC-2016 - 2 Question Paper With Solutionsand Gate EC-2016 - 2 Question Paper With Solutions are initialized with logic values, 0, 1, 0, 1 and 0, respectively. The clock has a 30% duty cycle.

Gate EC-2016 - 2 Question Paper With Solutions
The average power dissipated (in mW) in the resistor R is _____

Answer: (1.5)

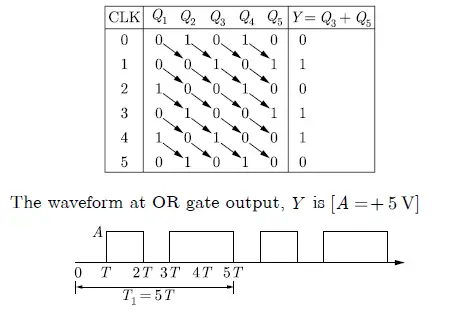

Explanation:

Gate EC-2016 - 2 Question Paper With Solutions
