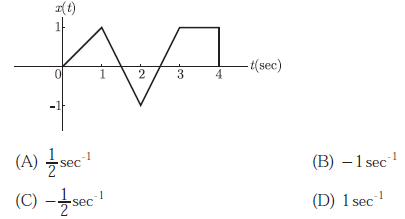

Q. 74 Consider the signal x(t) shown in Fig. Let h(t) denote the impulse response of the filter matched to x(t), with h(t) being non-zero only in the interval 0 to 4 sec. The slope of h(t) in the interval 3 < t < 4 sec is
Answer: (B)

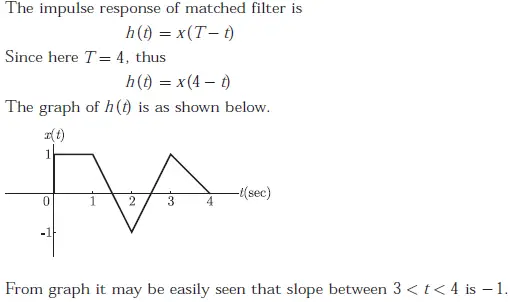

Explanation:
Q. 74 Consider the signal x(t) shown in Fig. Let h(t) denote the impulse response of the filter matched to x(t), with h(t) being non-zero only in the interval 0 to 4 sec. The slope of h(t) in the interval 3 < t < 4 sec is
Answer: (B)
Explanation:
