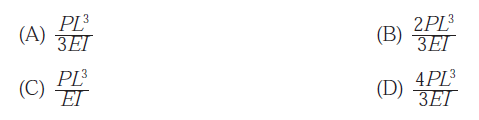

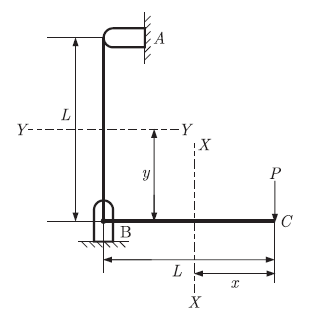

Q 40. A frame of two arms of equal length L is shown in the adjacent figure. The flexural rigidity of each arm of the frame is EI. The vertical deflection at the point of application of load P is

Gate ME-2009 Question Paper With Solutions

Gate ME-2009 Question Paper With Solutions

Answer: (D)

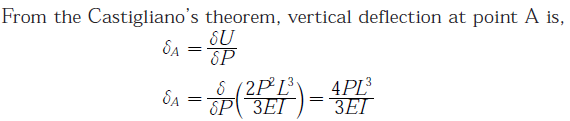

Explanation:

Gate ME-2009 Question Paper With Solutions

Gate ME-2009 Question Paper With Solutions

Gate ME-2009 Question Paper With Solutions

Gate ME-2009 Question Paper With Solutions
