Gate ME-2009 Question Paper With Solutions

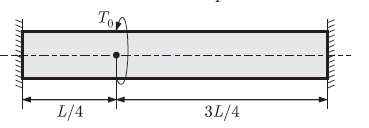

Q 35. A solid shaft of diameter, d and length L is fixed at both the ends. A torque, T0 is applied at a distance, L/4 from the left end as shown in the figure given below.

Gate ME-2009 Question Paper With Solutions

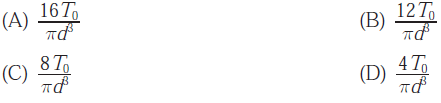

The maximum shear stress in the shaft is
Gate ME-2009 Question Paper With Solutions

Answer: (B)

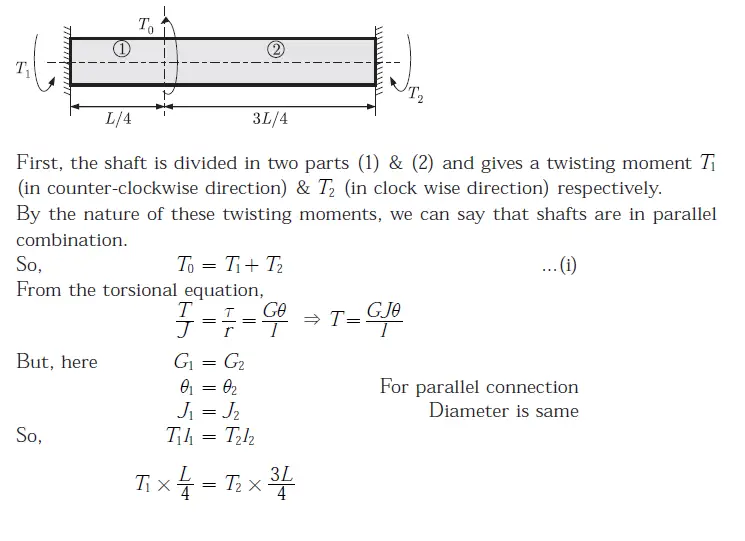

Explanation:

Gate ME-2009 Question Paper With Solutions

Gate ME-2009 Question Paper With Solutions

Learn More:   Gate ME-2006 Question Paper With Solutions
