Q. 68 A processor uses 2-level page table fro virtual to physical address translation.
Page table for both levels are stored in the main memory. Virtual and physical
addresses are both 32 bits wide. The memory is byte addressable. For virtual to
physical address translation, the 10 most significant bits of the virtual address are
used as index into the first level page table while the next 10 bits are used as
index into the second level page table. The 12 least significant bits of the virtual
address are used as offset within the page. Assume that the page table entries in
both levels of page tables are 4 a bytes wide. Further, the processor has a
translation look aside buffer(TLB), with a hit rate of 96%. The TLB caches
recently used virtual page numbers and the corresponding physical page numbers.
The processor also has a physically addressed cache with a bit ratio of 90%. Main
memory access time is 10 ns, cache access time is 1 ns, and {LB access time is
also 1ns.
Suppose a process has only the following pages in its virtual address space; two
contiguous code pages starting at virtual address 0 # 0000000, two contiguous
data pages starting at virtual address 0 # 00400000,and a stack page starting at
virtual address 0 # FFFFF000. The amount of memory required for storing the
page tables of this process is
(A) 8 KB
(B) 12 KB
(C) 16 KB
(D) 20 KB
Answer: (C)

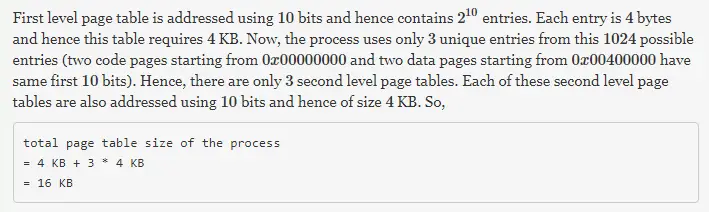

Explanation:
