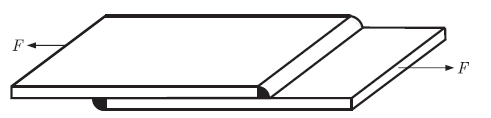

Q 32.  A fillet welded joint is subjected to transverse loading F as shown in the figure.
Both legs of the fillets are of 10 mm size and the weld length is 30 mm. If the
allowable shear stress of the weld is 94 MPa, considering the minimum throat
area of the weld, the maximum allowable transverse load in kN is

Gate ME-2012 Question Paper With Solutions
(A) 14.44

(B) 17.92

(C) 19.93

(D) 22.16

Answer: (C)

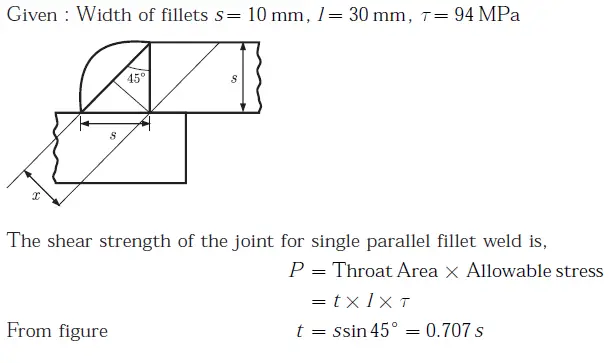

Explanation:
