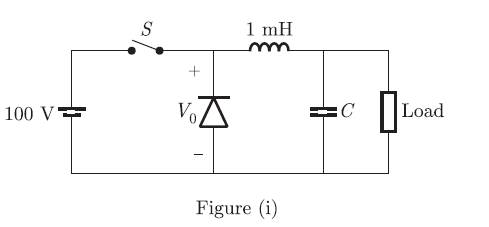

Q. 64 Figure (i) shows the circuit diagram of a chopper. The switch S in the circuit in
figure (i) is switched such that the voltage

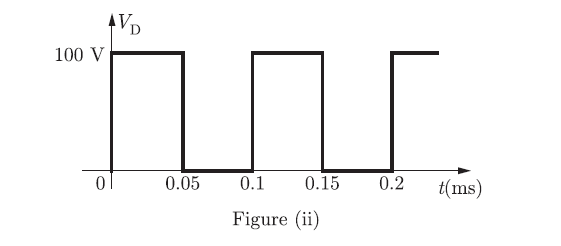

across the diode has the wave shape
as shown in figure (ii). The capacitance C is large so that the voltage across it is
constant. If switch S and the diode are ideal, the peak to peak ripple (in A) in
the inductor current is ______
Answer:(2.5 A.)
Explanation:
