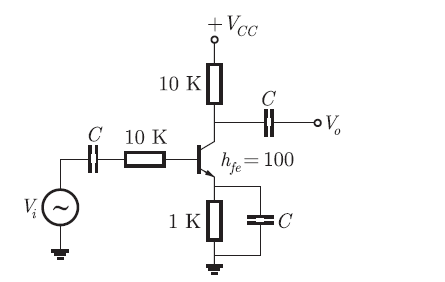

Q. 33 The magnitude of the mid-band voltage gain of the circuit shown in figure is
(assuming
of the transistor to be 100)
(A) 1
(B) 10
(C) 20
(D) 100
Answer:(D)

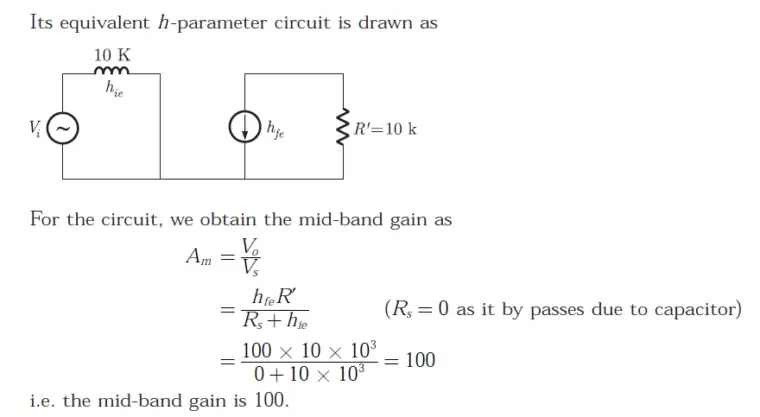

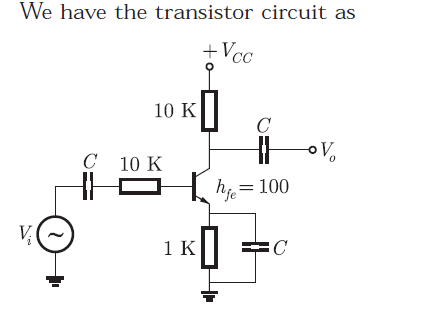

Explanation:
Q. 33 The magnitude of the mid-band voltage gain of the circuit shown in figure is
(assuming of the transistor to be 100)
(A) 1
(B) 10
(C) 20
(D) 100
Answer:(D)
Explanation:
