Gate EE-2014-1 Question Paper With Solutions

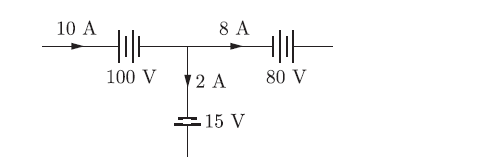

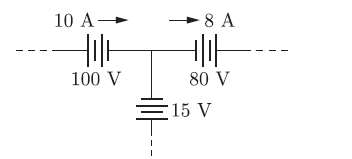

Q. 16 The three circuit elements shown in the figure are part of an electric circuit. The
total power absorbed by the three circuit elements in watts is _____.

Gate EE-2014-1 Question Paper With Solutions

Answer:(330W)

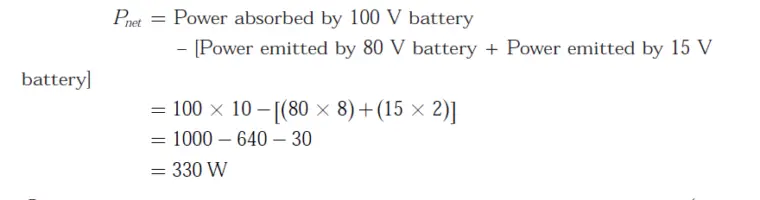

Explanation:Gate EE-2014-1 Question Paper With Solutions



Gate EE-2014-1 Question Paper With SolutionsGate EE-2014-1 Question Paper With Solutions

Learn More:   Gate CS-2003 Question Paper With Solutions
