Gate CS-2019 Question Paper With Solutions

Q. 59 What is the minimum number of 2-input NOR gates required to implement 4-variable function expressed in sum-of-minterms from as f = Σ(0, 2, 5, 7, 8, 10, 13, 15)? Assume that all the inputs and their complements are available. Answer ________ .

Note: This was Numerical Type question.

(A) 3

(B) 4

(C) 5

(D) 6

Answer: (A)

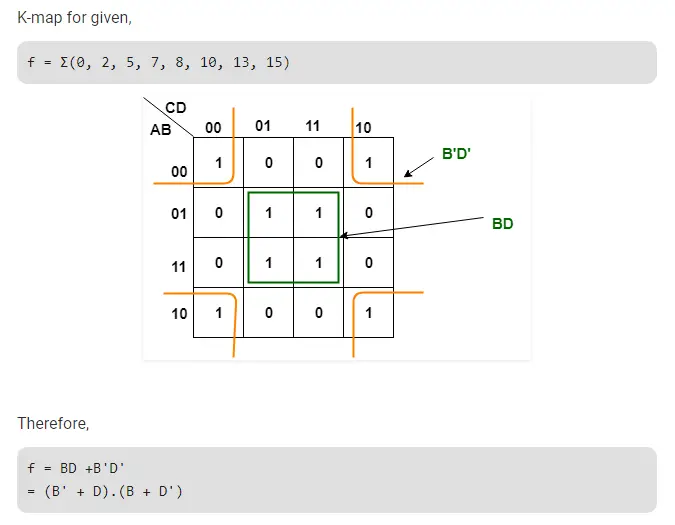

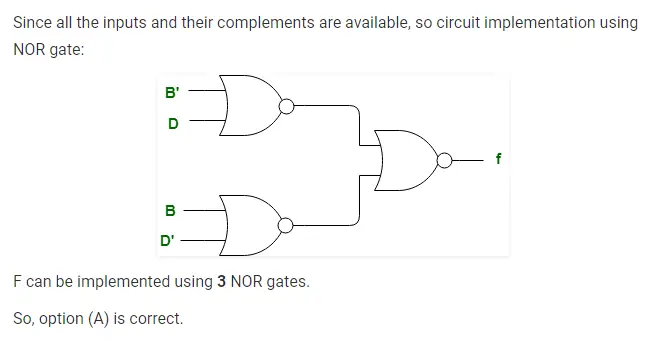

Explanation:

Gate CS-2019 Question Paper With Solutions Gate CS-2019 Question Paper With Solutions

Learn More:   Gate EE-2017-1 Question Paper With Solutions
