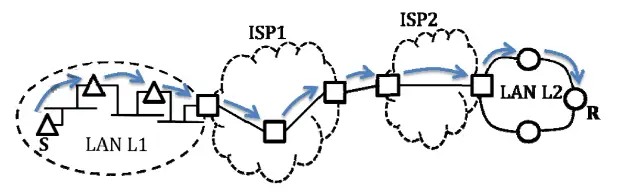

Q. 35 In the diagram shown below, L1 is an Ethernet LAN and L2 is a Token-Ring
LAN. An IP packet originates from sender S and traverses to R, as shown. The
links within each ISP and across the two ISPs, are all point-to-point optical links.
The initial value of the TTL field is 32. The maximum possible value of the TTL
field when R receives the datagram is ________.
(A) 25
(B) 24
(C) 26
(D) 28
Answer: (C)

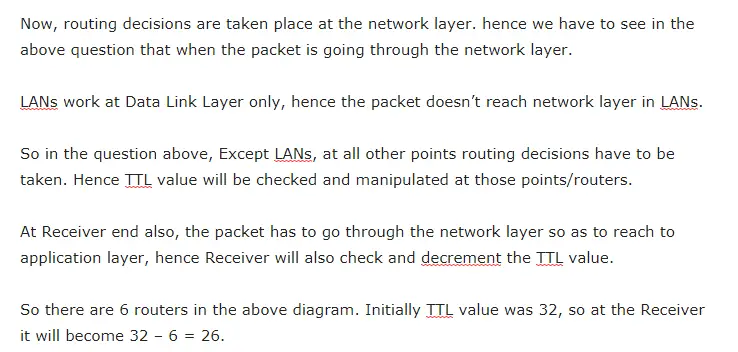

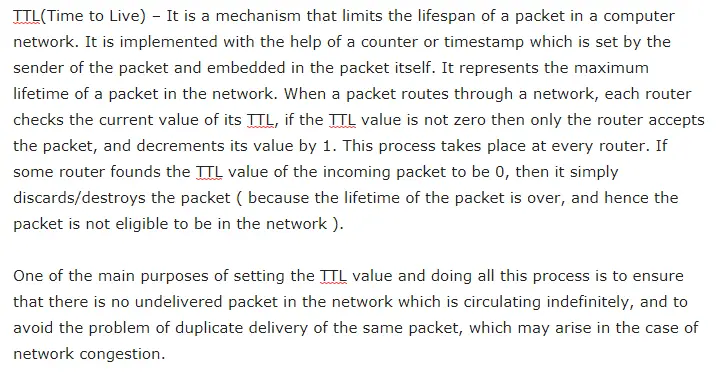

Explanation:
