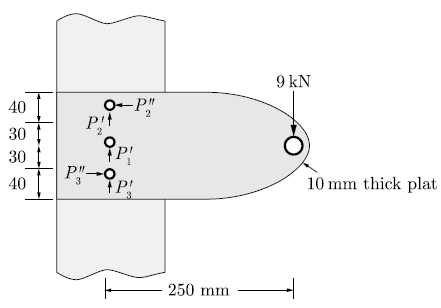

Q. 58 A cantilever bracket is bolted to a column using three
1.75 bolts P, Q and R. The value of maximum shear stress developed in the bolt P (in MPa)
is_______
Answer: (332.5454)

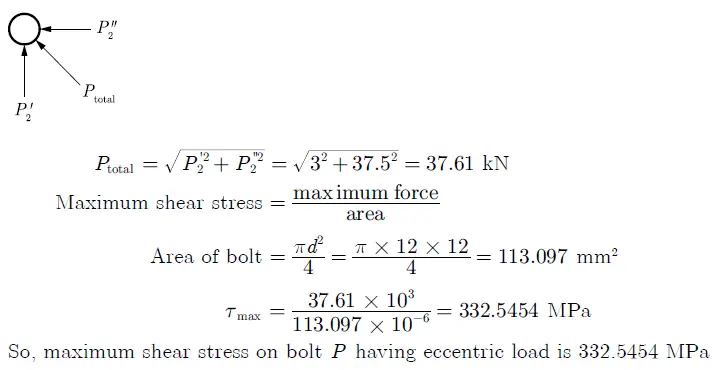

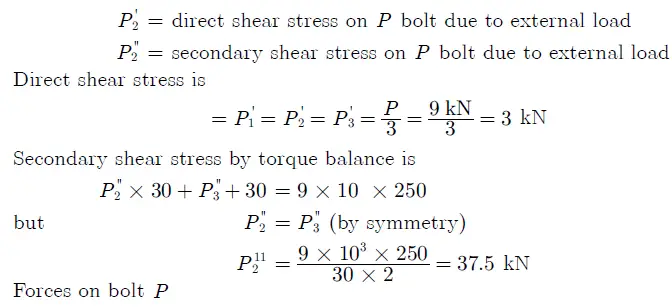

Explanation:
Q. 58 A cantilever bracket is bolted to a column using three 1.75 bolts P, Q and R. The value of maximum shear stress developed in the bolt P (in MPa)
is_______
Answer: (332.5454)
Explanation:
