Gate ME 2015-3 Question Paper With Solutions

Q. 29 A drill is positioned at point P and it has to proceed to point Q. The coordinates
of point Q in the incremental system of defining position of a point in CNC part
program will be

(A) (3, 12)

(B) (5, 7)

(C) (7, 12)

(D) (4, 7)

Answer: (D)

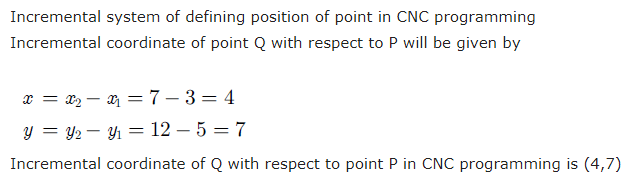

Explanation:
