Q. 36 The clock frequency applied to the digital circuit shown in the figure below is 1 kHz. If the initial state of the output of the flip-flop is 0, then the frequency of the output waveform Q in kHz is
(A) 0.25
(B) 0.5
(C) 1
(D) 2
Answer:(B)

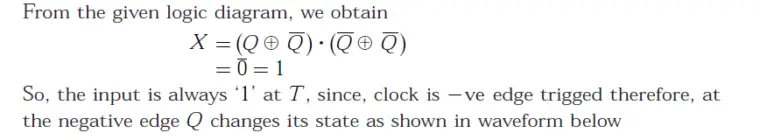

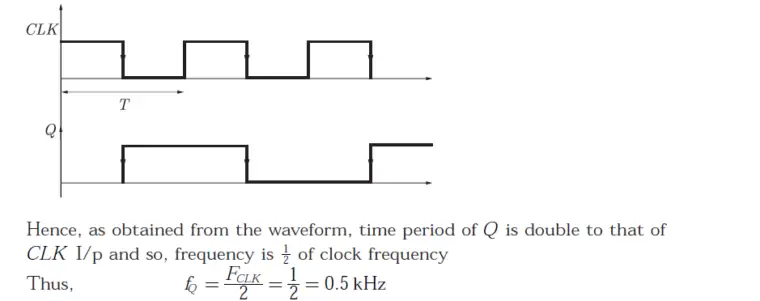

Explanation:
