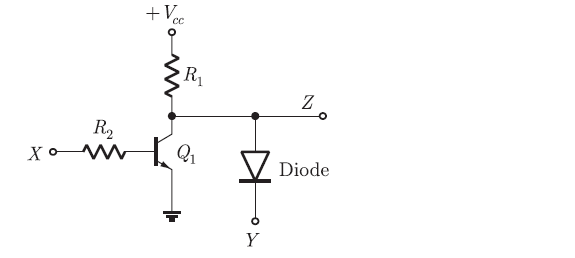

Q. 35 In the circuit shown below,
has negligible collector-to-emitter saturation voltage and the diode drops negligible voltage across it under forward bias. If

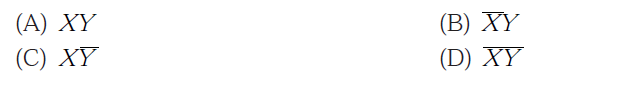

is +5 V, X and Y are digital signals with 0 V as logic 0 and Vcc as logic 1, then the Boolean expression for Z is
Answer:(B)

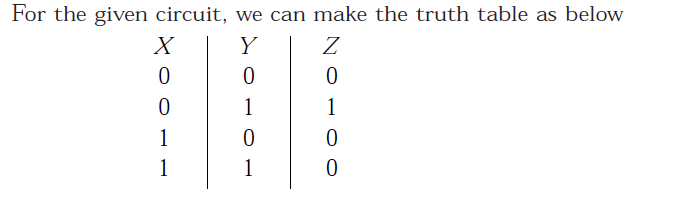

Explanation:
