Gate EC-2015 – 1 Question Paper With Solutions

Q. 43 In the circuit shown, switch SW is closed at t = 0. Assuming zero initial conditions, the value of Gate EC-2015 - 1 Question Paper With Solutions (in Volts) at t = 1 sec is_______.

Gate EC-2015 - 1 Question Paper With Solutions

Answer: 2.5284

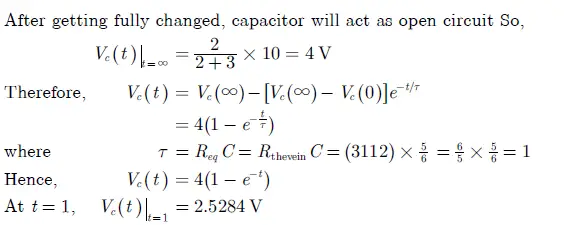

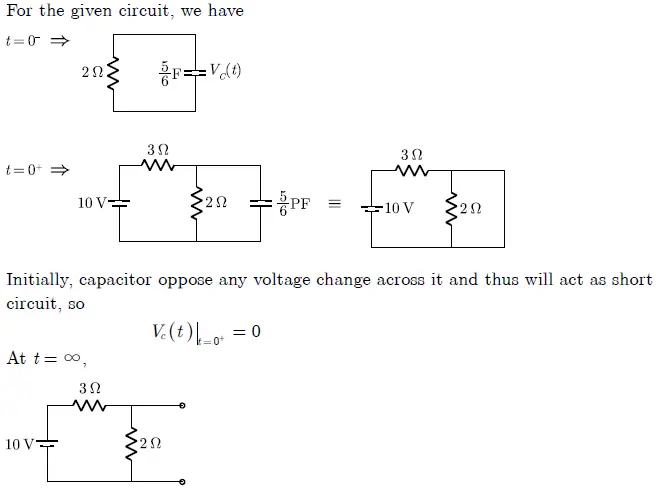

Explanation:

Gate EC-2015 - 1 Question Paper With SolutionsGate EC-2015 - 1 Question Paper With Solutions
