Gate EC-2015 – 1 Question Paper With Solutions

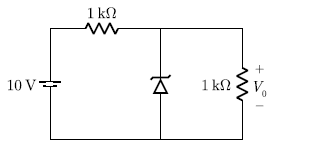

Q. 21 In the circuit shown below, the Zener diode is ideal and the Zener voltage is 6 V. The output voltage Gate EC-2015 - 1 Question Paper With Solutions (in volts) is______.

Gate EC-2015 - 1 Question Paper With Solutions

Answer: 5

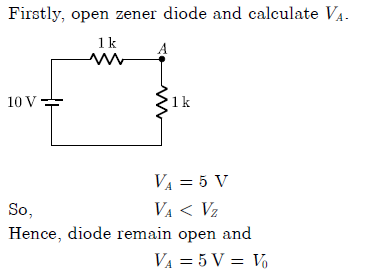

Explanation:

Gate EC-2015 - 1 Question Paper With SolutionsGate EC-2015 - 1 Question Paper With Solutions
