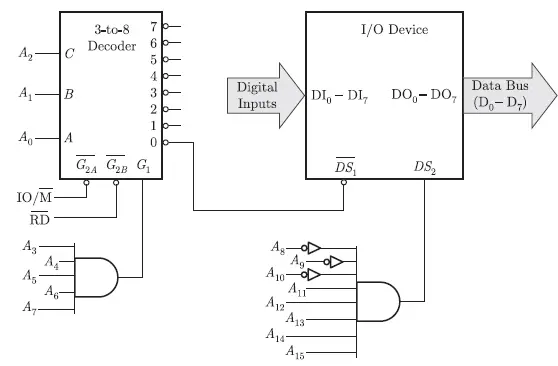

Q. 42 For the 8085 microprocessor, the interfacing circuit to input 8-bit digital data
from an external device is shown in the figure. The instruction for correct data transfer is
(A) MVI A, F8H
(B) IN F8H
(C) OUT F8H
(D) LDA F8F8H
Answer: D
Explanation:
Not Required
