Gate EC-2014 – 2 Question Paper With Solutions

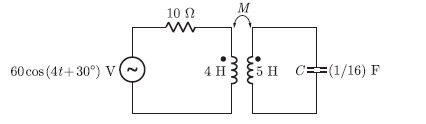

Q. 33 In the magnetically coupled circuit shown in the figure,56% of the total flux emanating from one coil links the other coil. The value of the mutual inductance (in H) is ______.

Gate EC-2014 - 2 Question Paper With Solutions

Answer: 2.50 H.

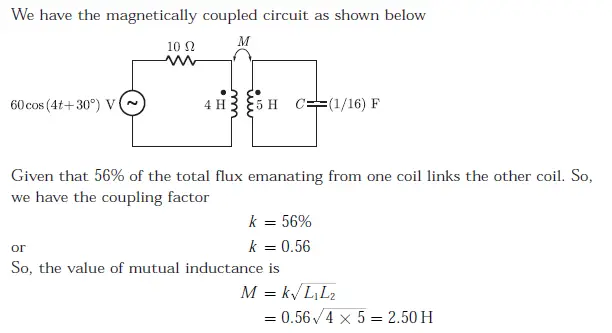

Explanation:

Gate EC-2014 - 2 Question Paper With Solutions

Learn More:   Gate CS-2016-1 Question Paper With Solutions
