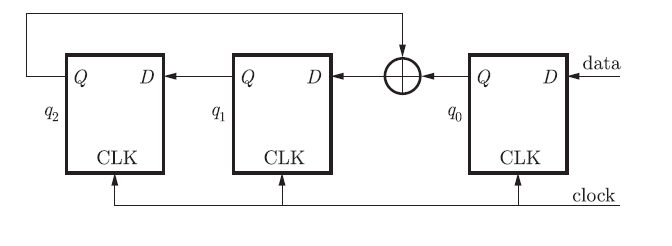

Q. 85 Consider the circuit in the diagram. The + operator represents Ex-OR. The D flip-flops are initialized to zeroes (cleared). Gate CS-2006 Question Paper With Solutions The following data : 100110000 is supplied to the “data” terminal in nine clock cycles. After that the values of q2q1q0 are

(A) 000

(B) 001

(C) 010

(D) 101

Answer: (C)

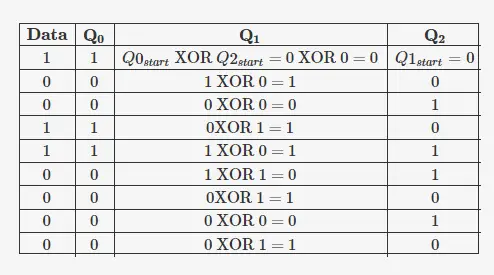

Explanation:
