Gate ME 2014-1 Question Paper With Solutions

Q. 46 A slider crank mechanism has slider mass of 10 kg, stroke of 0.2 m and rotates
with a uniform angular velocity of 10 rad/s. The primary inertia forces of the
slider are partially balanced by a revolving mass of 6 kg at the crank, placed at
a distance equal to crank radius. Neglect the mass of connecting rod and crank.
When the crank angle (with respect to slider axis) is Gate ME 2014-1 Question Paper With Solutions the unbalanced force
(in newton) normal to the slider axis is _____

Answer: (30N)

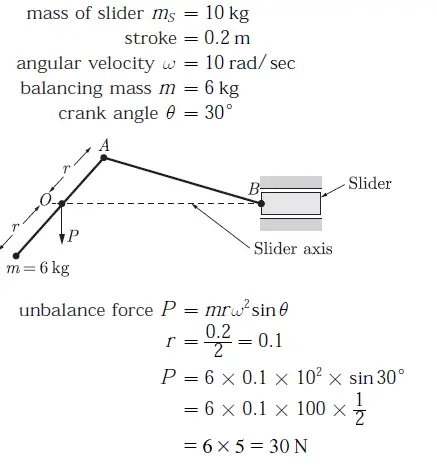

Explanation:

Gate ME 2014-1 Question Paper With Solutions
