Gate EE-2015-1 Question Paper With Solutions

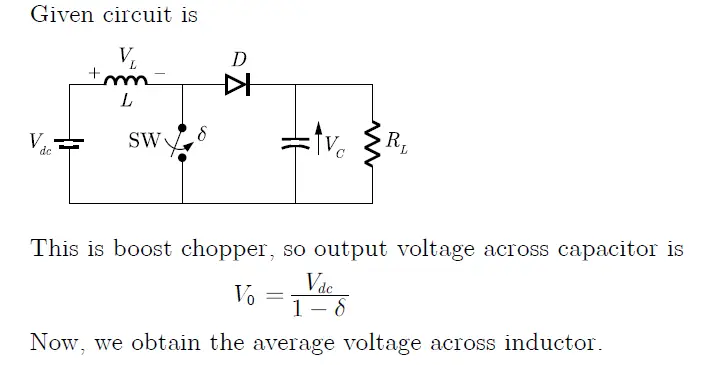

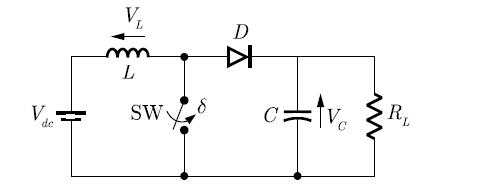

Q.43.A self commutating switch SW , operated at duty cycle δ is used to control the
load voltage as shown in the figure.

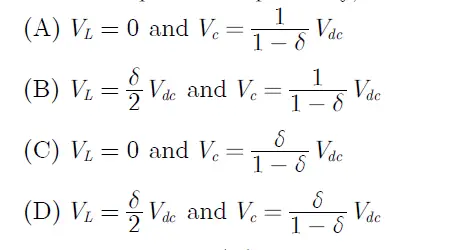

Under steady state operating conditions, the average voltage across the inductor and the capacitor respectively, are
Answer:(A)

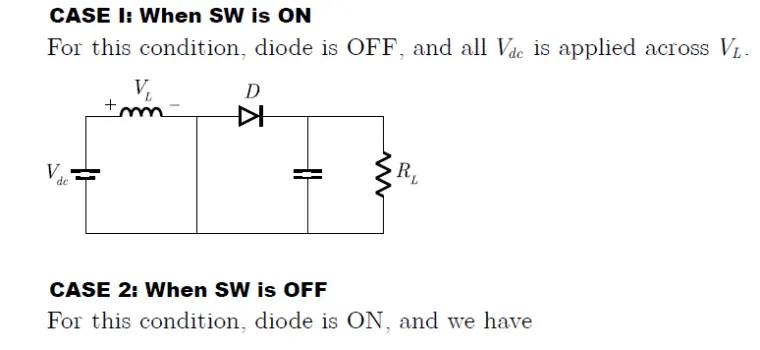

Explanation:
