Gate EE-2019 Question Paper With Solutions

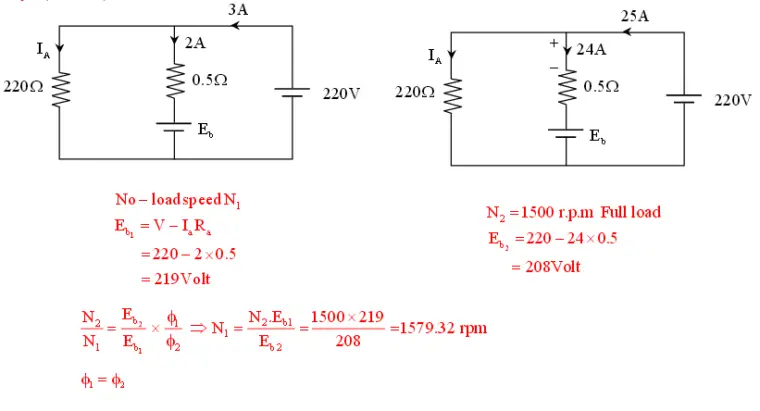

Q.57 A 220V DC shunt motor takes 3A at no-load. It draws 25A when running at full-load at 1500 rpm.The armature and shunt resistances are 0.5Ω and 220 Ω, respectively. The no-load speed in rpm (round off to two decimal places) is _______ .

Answer:(1579.32)

Explanation:
