Q. 23 In the circuit shown below, the Norton equivalent current in amperes with respect to the terminals P and Q is
(A) 6.4 – j 4.8
(B) 6.56 – j 7.87
(C) 10 + j 0
(D) 16 + j 0
Answer: A

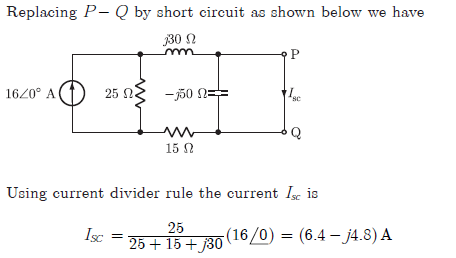

Explanation:
Q. 23 In the circuit shown below, the Norton equivalent current in amperes with respect to the terminals P and Q is
(A) 6.4 – j 4.8
(B) 6.56 – j 7.87
(C) 10 + j 0
(D) 16 + j 0
Answer: A
Explanation:
