Gate ME-2011 Question Paper With Solutions

Q 9.  A double-parallelogram mechanism is shown in the figure. Note that PQ is a
single link. The mobility of the mechanism is

(A) -1

(B) 0

(C) 1

(D) 2

Answer: (C)

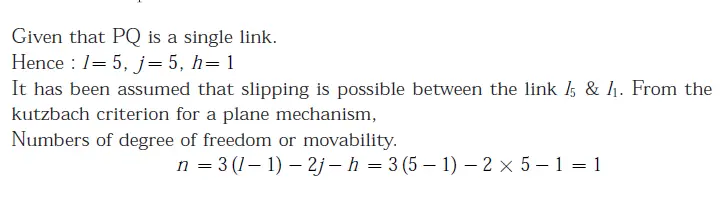

Explanation:
