Gate ME-2007 Question Paper With Solutions

Q.58. A hole is specified as Gate ME-2007 Question Paper With Solutionsmm. The mating shaft has a clearance fit with minimum clearance of 0.01 mm. The tolerance on the shaft os 0.04 mm. The maximum clearance in mm between the hole and the shaft is

(A) 0.04

(B) 0.05

(C) 0.10

(D) 0.11

Answer: (C)

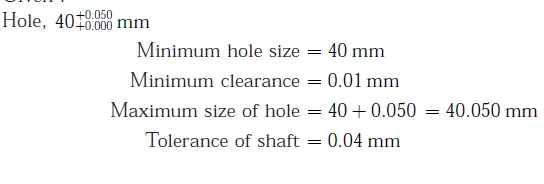

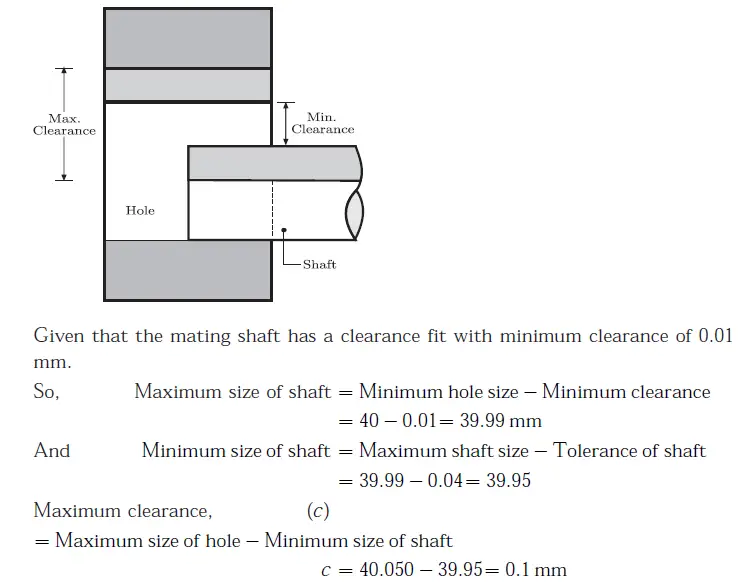

Explanation:

Gate ME-2007 Question Paper With Solutions

Gate ME-2007 Question Paper With Solutions
