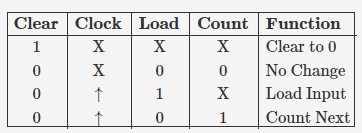

Q. 51 The control signal functions of 4-bit binary counter are given below
(where X is “don’t care”)

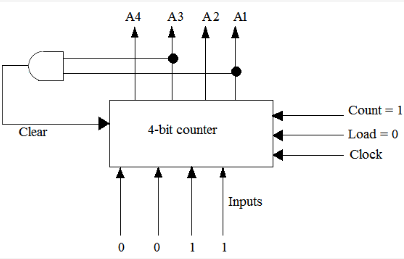

The counter is connected as follows
Assume that the counter and gate delays are negligible. If the counter starts at 0,
then it cycles through the following sequence
(A) 0,3,4
(B) 0,3,4,5
(C) 0,1,2,3,4
(D) 0,1,2,3,4,5
Answer: (C)

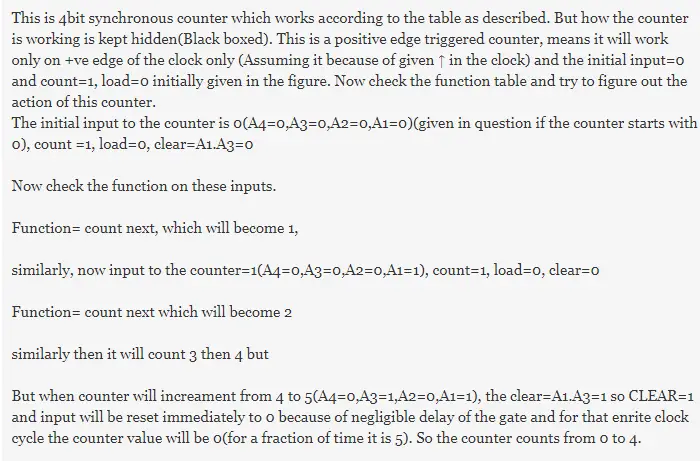

Explanation:
