Q. 27 Consider the following multiplexor where 10, 11, 12, 13 are four data input lines selected by two address line combinations A1A0 = 00, 01, 10, 11 respectively and f is “the output of the multiplexor. EN is the enable input.
The function f(x, y, z) implemented by the above circuit is :
(A) xyz’
(B) xy + z
(C) x + z
(D) None of these
Answer: (A)

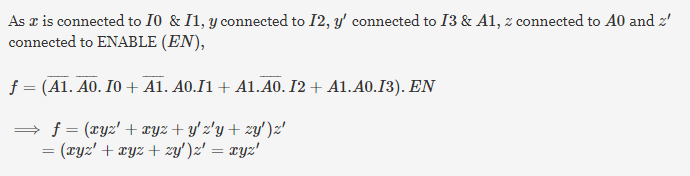

Explanation:
