Q. 8 In the silicon BJT circuit shown below, assume that the emitter area of transistor Q1 is half that of transistor Q2
The value of current Io is approximately
(A) 0.5 mA
(B) 2 mA
(C) 9.3 mA
(D) 15 mA
Answer: B

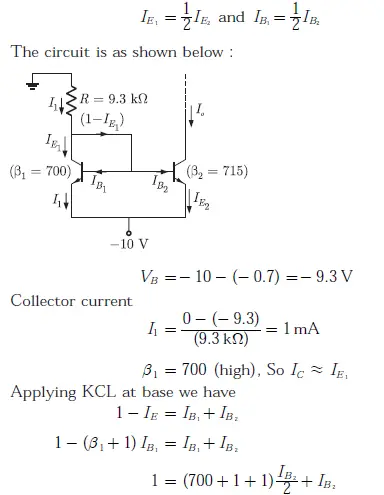

Explanation:
Q. 8 In the silicon BJT circuit shown below, assume that the emitter area of transistor Q1 is half that of transistor Q2
The value of current Io is approximately
(A) 0.5 mA
(B) 2 mA
(C) 9.3 mA
(D) 15 mA
Answer: B
Explanation:
