Gate EC-2010 Question Paper With Solutions

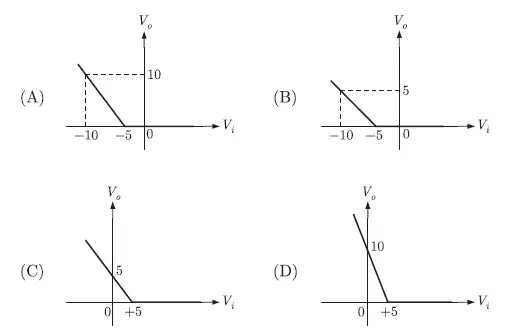

Q. 38 The transfer characteristic for the precision rectifier circuit shown below is (assume ideal OP-AMP and practical diodes)

Gate EC-2010 Question Paper With Solutions Gate EC-2010 Question Paper With Solutions

Answer: B

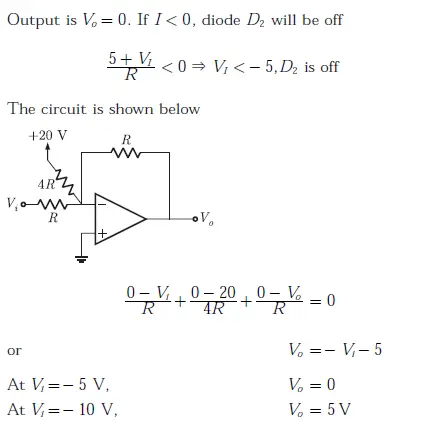

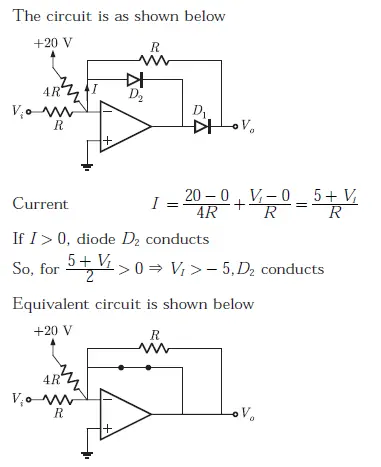

Explanation:
Gate EC-2010 Question Paper With Solutions
Gate EC-2010 Question Paper With Solutions
