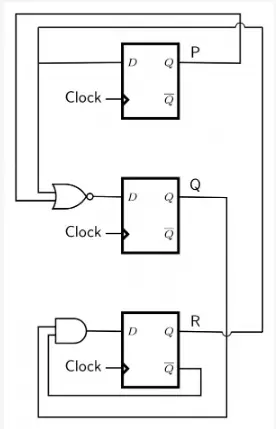

Q. 50 Consider the following circuit involving three D-type flip-flops used in a certain type of counter configuration.
If at some instance prior to the occurrence of the clock edge, P, Q and R have a
value 0, 1 and 0 respectively, what shall be the value of PQR after the clock edge?
(A) 000
(B) 001
(C) 010
(D) 011
Answer: (D)

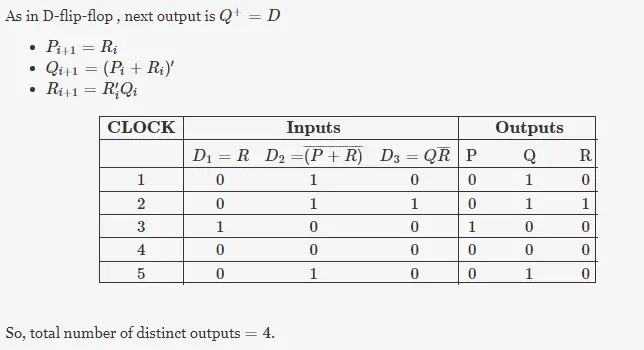

Explanation:
